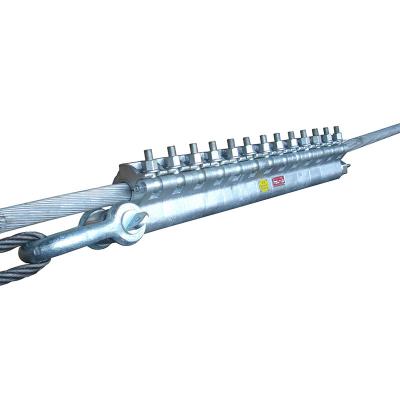

Bolt Type Radial Locking Clamp
Bolt Type Radial Locking Clamp
Uses :can be used
in large section conductor and long span high tensioning construction occasion
, protect conductor effectively
Rated load :150kN
The diameter of
applicable conductor range :Φ37～Φ45mm(should confirm the diameter of
conductor before proceeding production )
Tighten moment of
compression bolt : 120N.m
Weight :50kg.
Notes:the aluminium
liner is replaceable
