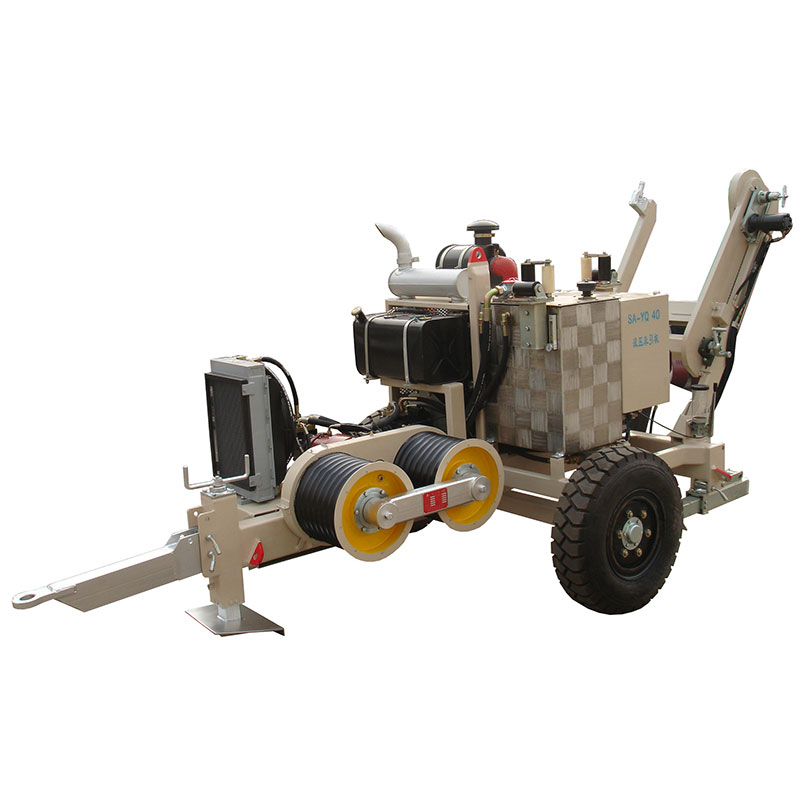

SA-YQ40 Hydraulic Puller
- Product model：SA-YQ40
- Product number：07011
- Views：6669
SA-YQ40 Hydraulic Puller
-
Essential parameter
-
Maximum pull force (kN):40
-
Continuous pull force (kN):35
-
Maximum speed (km/h):5
-
Bull wheel bottom of groove diameter(mm) : Φ400
-
Bull wheel grooves number : 7
-
Maximum suitable steel rope diameter (mm): Φ16
-
Maximum through connector diameter (mm): Φ50
-
Engine power /speed (kW/rpm):60/2200
-
Dimensions (mm):3500×2000×2300
-
Weight (kg): 2500
-
Feature
-
Infinitely variable speed and pull force control ,the pull in the rope can be read on the line pull gauge .
-
The max pull for conductor –stringing operation can preset ,automatic overload protection system .
-
Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
-
Attached reel winder with automatically level wind ,load and unload conveniently .
-
Main component
-
Engine : Cummins water cooled diesel engine.
-
Main variable pump and main motor :Rexroth (BOSCH)
-
Reducer :RR (Italian)
-
Main hydraulic valve : Rexroth (BOSCH)
-
Matched reel:GSP1400 ,Item number :07125C
